Lincoln Trap Machines

Lincoln Clay Target Machines


We are pleased to offer a selection of LINCOLN TRAP MACHINES.


AS2002 Infinity Sporter

Infinity AS2002-320/400 Sporter

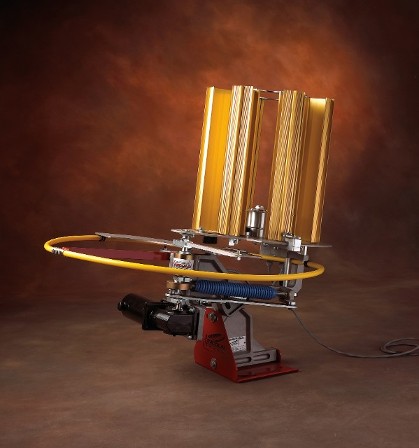

(AS2002-320 shown in picture)

  • Target Capacity: Available in 320 and 400 targets
  • Height:  36"
  • Width:  24"
  • Length:  35"
  • Power:  12V DC deep cycle marine battery (approx. 5000 firings per charge)
  • Weight:  126lbs
  • Elevation Adjustment:  -10 degrees to +65 degrees (elevates to teal position)
  • Side Tilt Adjustment:  -10 degrees to +15 degrees
  • Throwing Distance:  100+ yards
  • Stainless steel magazine plate, launch plate and drop pad
  • Power light to indicate proper battery connections (Impossible to run machine in reverse)
  • Target separating knife (allows feeding of wet or frozen targets)
  • No microswitch.  Uses maintenance free non-mechanical reed switch
  • Wash-down style motor with stainless steel hardware to withstand the elements
  • Warranty:  Clutch Assembly has 5 year warranty.  Balance of the machine has a 2 year parts warranty
  • Quantity pricing available

AS2002-320 Price:  $2914.00

AS2002-400 Price:  $3033.00





AW2002 Infinity Wobble

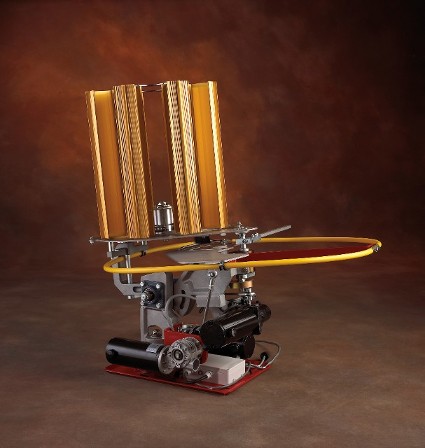

Infinity AW2002-320/400 Wobble Trap

(Part# AW2002-320 or AW2002-400)

  • Target Capacity: 320 or 400
  • Height:  40"
  • Width:  44"
  • Length:  42"
  • Elevation motion:  Amount of motion 22 degrees or 14 degrees
  • Angle Motion:  Hole #1 - 34 degrees  Hole #2 - 38 degrees  Hole #3 - 47 degrees  Hole #4 - 58 degrees
  • Seeks a new position after each fire (63 sequences)
  • Stainless steel launch plate and drop pad
  • Motors operate independently (with hand-held controller)
  • Actual weight:  168lbs
  • Shipping weight:  190lbs
  • Two year parts warranty, Five year clutch assembly warranty

AW2002-320 Price:  $5,425.00

AW2002-400 Price:  $5,525.00






Image Unavailable

Infinity AT2002-320/400 ATA Trap

(Part# AT2002-320 or AT2002-400)

  • Target Capacity: 320 or 400
  • Height:  40"
  • Width:  44"
  • Length:  42"
  • Angle Motion:  Hole #1 - 34 degrees  Hole #2 - 38 degrees  Hole #3 - 47 degrees  Hole #4 - 58 degrees
  • Seeks a new position after each fire (63 sequences)
  • Stainless steel launch plate and drop pad
  • Motors operates with hand-held controller
  • Actual weight:  168lbs
  • Shipping weight:  190lbs
  • Two year parts warranty, Five year clutch assembly warranty

AT2002-320 Price:  $4,900.00

AT2002-400 Price:  $5,000.00




Image Unavailable

Infinity AW90MM Midi Wobble Trap      **NEW**

(Part# AW90MM)

BRAND NEW IN 2016

MORE INFORMATION AND PICTURE COMING SOON

This is a Wobble machine with horizontal and vertical motors and throws 90MM Midi targets.  Holds 400 Midi targets.

Price:  $5,525.00




AR2002 Rabbit Chandelle

Infinity AR2002 Rabbit/Chandelle/Teal

(Part# AR2002)

  • Target Capacity: 288 Rabbit or 320 Standard Targets
  • Height:  40"
  • Width:  24"
  • Length:  35"
  • Throwing distance:  100+ yards
  • Automatic single arm rabbit/chandelle machine
  • Throws both rabbit and standard 108mm targets
  • Quick change over from standard to rabbits
  • Throws inverted rabbits
  • Versatile target presentation:  Hopping rabbits, to high-arcing chandelles and Teal
  • Includes 2 interchangeable throwing arms:  one rabbit and one standard target.  Optional teal arm and optional high angle rabbit are available
  • Elevation adjustment:  -10 degrees to +65 degrees (elevates to teal position)
  • Side Tilt Adjustment:  -10 degrees to +15 degrees
  • Power - 12V DC deep cycle marine battery (approx. 5000 firings per charge)
  • Stainless steel launch plate and drop pad
  • Power light to indicate proper battery connections (Impossible to run machine in reverse.)
  • Target separating knife (allows feeding of wet or frozen targets)
  • No microswitch.  Uses maintenance free non-mechanical reed switch
  • Wash-down style motor with stainless steel hardware to withstand the elements
  • Actual weight:  136lbs
  • Shipping weight:  190lbs
  • Two year parts warranty, Five year clutch assembly warranty
  • Quantity pricing available

Price:  $3,830.00






Image Unavailable

Infinity AR90MM Midi Chandelle/Teal   **NEW**

(Part# AR90MM)

BRAND NEW IN 2016

MORE INFORMATION AND PICTURE COMING SOON

This is a Chandelle/Teal machine that throws 90MM Midi targets.  Holdes 400 Midi targets.

Price:  $3,830.00




AB2002 - Image Unavailable

Infinity AB2002 Battue

(Part# AB2002)

  • Target Capacity:
  • Height:
  • Width:
  • Length:
  • Throwing distance:
  • Elevation adjustment:  -10 degrees to +65 degrees (elevates to teal position)
  • Side Tilt Adjustment:  -10 degrees to +15 degrees
  • Power - 12V DC deep cycle marine battery (approx. 5000 firings per charge)
  • Stainless steel launch plate and drop pad
  • Power light to indicate proper battery connections (Impossible to run machine in reverse.)
  • Target separating knife (allows feeding of wet or frozen targets)
  • No microswitch.  Uses maintenance free non-mechanical reed switch
  • Wash-down style motor with stainless steel hardware to withstand the elements
  • Actual weight:
  • Shipping weight:
  • Two year parts warranty, Five year clutch assembly warranty
  • Quantity pricing available

Price:  $3,152.00





Image Unavailable

Infinity Rabbue - Battue style w/ Rabbit Targets

**NEW**

(Part# ARABBUE)

BRAND NEW IN 2016

MORE INFORMATION AND PICTURE COMING SOON

This is a Battue style machine that throws Rabbit targets.  Holds 360 Rabbit targets.

Price:  $3,033.00




A92002 - Image Unavailable

Infinity A92002-400 90mm Trap

(Image Unavailable)

  • Target Capacity:  400 Targets
  • Two choices on Target Carousel
  • Height:
  • Width:
  • Length:
  • Throwing distance:
  • Machine throws 90mm targets
  • Elevation adjustment:  -10 degrees to +65 degrees (elevates to teal position)
  • Side Tilt Adjustment:  -10 degrees to +15 degrees
  • Power - 12V DC deep cycle marine battery (approx. 5000 firings per charge)
  • Stainless steel launch plate and drop pad
  • Power light to indicate proper battery connections (Impossible to run machine in reverse.)
  • Target separating knife (allows feeding of wet or frozen targets)
  • No microswitch.  Uses maintenance free non-mechanical reed switch
  • Wash-down style motor with stainless steel hardware to withstand the elements
  • Actual weight:
  • Shipping weight:
  • Two year parts warranty, Five year clutch assembly warranty
  • Quantity pricing available

Price:  $3,033.00






Infinity ASSKEET-400 Skeet Set

(Part# ASSKEET-400)

  • Target Capacity:  400 Targets per machine
  • Two Target Carousel sizes available
  • Height:  40"
  • Width:
  • Length:
  • Throwing distance:
  • Easy Installation
  • Does not come with field wiring/harness
  • 100' "Western Style" V400 release cord included
  • No triggers or solenoids to fail; yet achieving fast release time and a more accurate and consistent target flight.  This is accomplished using Lincoln exclusive electronic controls, most reliable electronics in the industry.  No microswitches
  • Simple adjustments using a 3/4" wrench:  Elevation - windage - tilt & spring adjustments
  • Power - 12V DC deep cycle marine battery (approx. 5000 firings per charge); 110v optional
  • Stainless steel launch plate and drop pad
  • Lightweight however extremely rugged
  • Cast aluminum frames
  • Aluminum extruded magazines
  • Actual weight:  136lbs
  • Shipping weight:
  • Two year parts warranty, Five year clutch assembly warranty

Price:  $6,550.00
