Voice Release Products
The VENTRILOQUIST - Voice Release is available for both trap and skeet. Both units use microprocessor based technology to recognize a voice and provide selectable target sequences (skeet) and delay options. The skeet version may also be used for trap. Two options are available, the Radio-Linked (skeet transmitter, trap transmitter, skeet receiver, trap receiver) version and the Wire-Linked (skeet wire-linked, trap wire-linked) version. The essential difference between the two versions is that the shooter's signal to the target machine(s) is transmitted via an FM signal in the "Radio-Linked" version versus a cable in the "Wire-Linked" version. Both units come standard with a lapel microphone and custom case. A throat microphone is available as an extra cost option.
We are pleased to offer a selection of VENTRILOQUIST VOICE RELEASE PRODUCTS.
|
 |
Radio-Linked Voice Release for Skeet |
|
|
The lapel microphone, which you can find picture down below, plugs into the unit which is attached to the shooter's belt. System includes 1 Transmitter and 1 Receiver. As long as you're plugging the receiver into the Skeet Field's junction box you will only need the one receiver. If you don't have a field wiring/junction box setup between your two machines, you may need an extra receiver to operate two machines.

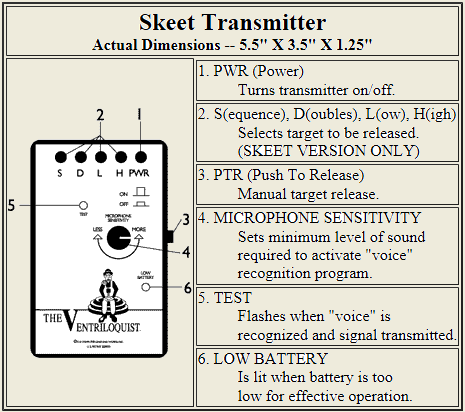

The unit's controls and functions are shown below. |
|
|
 |
Radio Linked Voice Release for Trap |
|
|
This system is for operating one machine and with the functionality for trap shooting. Same as the system above for Skeet, this includes 1 Transmitter and 1 Receiver, as well as the plug-in lapel microphone you see pictured to the left.

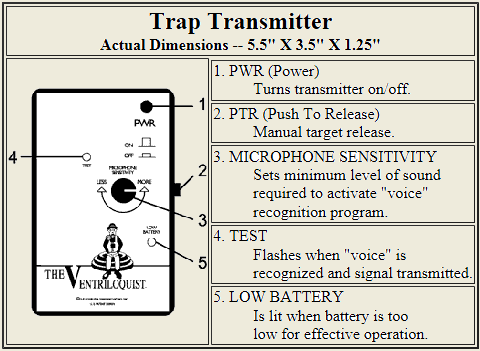

The unit's controls and functions are shown below. |
|
|
 |
Wire Linked Voice Release for Skeet |
|
|

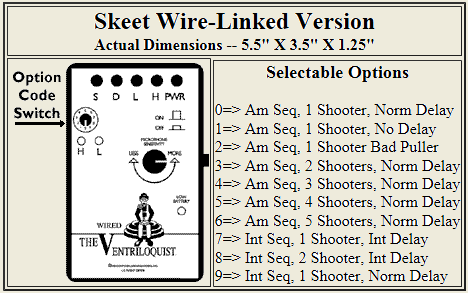

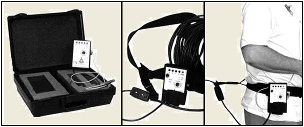

This version of the VENTRILOQUIST uses all of the applicable technology from the "Radio-Linked" version. The unit is pictured below and consists of a compact controller, lapel microphone, 100 foot cable, custom belt, and custom carrying case. The controller is connected to your release cord outlet via the cable. The controller's microprocessor recognizes your "PULL" and releases the target(s). The programmed sequence of the SKEET version can be interrupted to repeat a target or clear a machine with no disruption of the American or International skeet sequence. The unit's controls and functions are illustrated below. |
|
|
|
|
Wire Linked Voice Release for Trap |
|
|
This version of the VENTRILOQUIST uses all of the applicable technology from the "Radio-Linked" version. The unit is pictured below and consists of a compact controller, lapel microphone, 100 foot cable, custom belt, and custom carrying case. The controller is connected to your release cord outlet via the cable. The controller's microprocessor recognizes your "PULL" and releases the target(s).

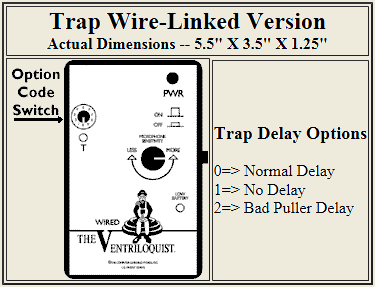

The unit's controls and functions are illustrated below. |
|
|
 |

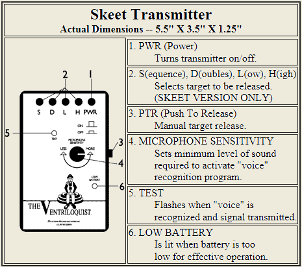

Radio Linked Skeet Transmitter - Transmitter Only |
(Part# RADIO SKEET TRANSMITTER) |
Just need an extra Transmitter for your Radio Linked System for Skeet? This is what you need. |
|
|
 |
Radio Linked Skeet Receiver - Receiver Only |
(Part# RADIO SKEET RECEIVER) |
Need an extra Skeet Receiver for your Radio Linked System? |
|
|
 |
Radio Linked Trap Transmitter - Transmitter Only |
(Part# RADIO TRAP TRANSMITTER) |
Need another transmitter for your Radio Linked System for Trap? Here it is. |
|
|
 |
Radio Linked Trap Receiver - Receiver Only |
(Part# RADIO TRAP RECEIVER) |
Need a new Receiver for your Radio Linked System for Trap? |
|
|
|
