YOUR SOURCE FOR CLAY TARGET MACHINES, PARTS, SERVICE & CUSTOM RANGE DESIGN SINCE 1985




Wireless Voice Release Systems


We are pleased to offer a selection of BRB Wireless Voice Release Systems.

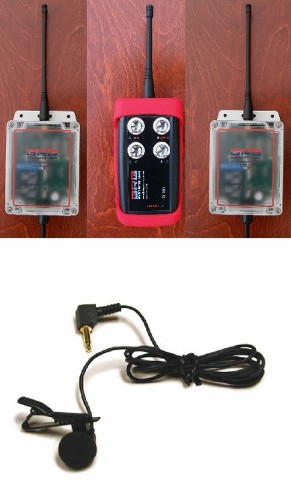

Wireless Voice Release for Trap

Wireless Voice Release System for One Machine

(Part# TX-101+RX-101)

The Wireless Voice Release System for One Trap Machine comes with one TX-101 Advanced Digital Transmitter and one RX-101 Advanced Digital Receiver for use with one trap machine.  This is the best system you'll find on the market for wireless voice release at this price level.

Features:

  • Comes with everything you need to set up Wireless Voice Release on one trap machine
  • Even includes batteries for your transmitter

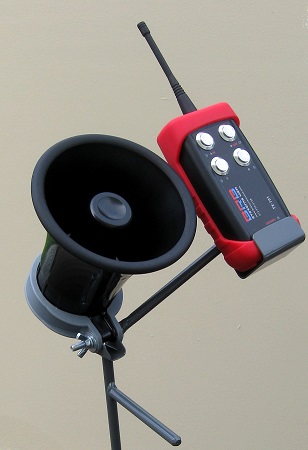

  • Standard system includes the lapel microphone or you can get the Deluxe System which includes a large microphone on a stand and a bracket to sit your transmitter in
  • This system will work for two trap machines if they are both close enough to connect cables to the one receiver, which is capable of operating two machines.  Or you can add a second receiver at any point and use the same transmitter with both and keep everything completely wireless.

Price:  $280.00

Deluxe Version:  $380.00




Wireless Voice Release for Skeet

Wireless Voice Release System for Two Machines

(Part# TX-101+2RX-101)

The Wireless Voice Release System for Two Trap Machines comes with one TX-101 Advanced Digital Transmitter and two RX-101 Advanced Digital Receivers for use with two trap machines.  This can be used for any setup with two machines such as Skeet or a Sporting Clays station.  Can be used for Super Sporting or Quad Sporting Clays stations as well by adding receivers.  This is the best system you'll find on the market for wireless voice release for skeet at this price level.

Features:

  • Comes with everything you need to set up Wireless Voice Release on two trap machines
  • Even includes batteries for your transmitter
  • Standard system includes the lapel microphone or you can get the Deluxe System which includes a large microphone on a stand and a bracket to sit your transmitter in
  • This system will work for up to four trap machines if two are close enough to one receiver and two are close enough to the other receiver, as each receiver is capable of operating two machines.

Price:  $395.00

Deluxe Version:  $495.00






The Components

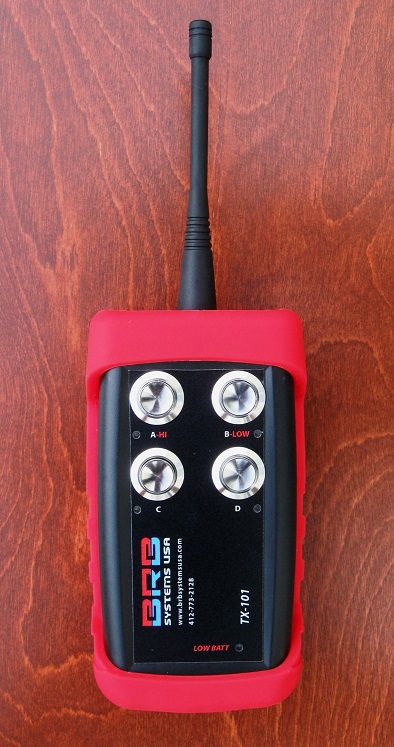

TX-101 Digital Transmitter

TX-101 Advanced Digital Transmitter

(Part# TX-101 TRANSMITTER)

The TX-101 Advanced Digital Transmitter is used in all of BRB's Wireless Voice Release Systems and Wireless Counting Systems.  It is a professional grade digital transmitter priced for the individual shooter.

Features:

  • Secure communication - 128 channels, using a different frequency at each shooting stand which means no interference between fields
  • Range - Exceptional 500 yard range
  • Quality - Heavy duty protective rubber boot encases a tough ABS enclosure & stainless steel water/vandal proof switchs
  • Greater Versatility - Controls 1-4 traps.  16 user selectable modes and button layout options allow use in Trap, Sporting Clays, Super Sporting Clays, Quad Sporting Clays, Skeet, etc
  • Power - Auto wake and shut down, coupled with 4AA batteries make for the longest battery life available.  *1,000,000 button releases
  • Manual & Voice Release - Supplied with a durable, metal bodied, lapel microphone that automatically sets the unit to voice operated mode when plugged in
  • Has dip switch settings you can change to change microphone sensitivity
  • Internal microphone for user selectable report pairs
  • Instant true pairs
  • Variable timed following pairs
  • Voice Release 'HOLD' feature.  No need to arm each shot.
  • Skeet - American & International Delay modes
  • Available with a full size microphone and stand for Voice Release use
  • Voice Release SEQUENCE feature.  The user programs the skeet sequence:  "PULL" - Releases trap 1 - BANG "PULL" - Release trap 2 - BANG

Price: $160.00

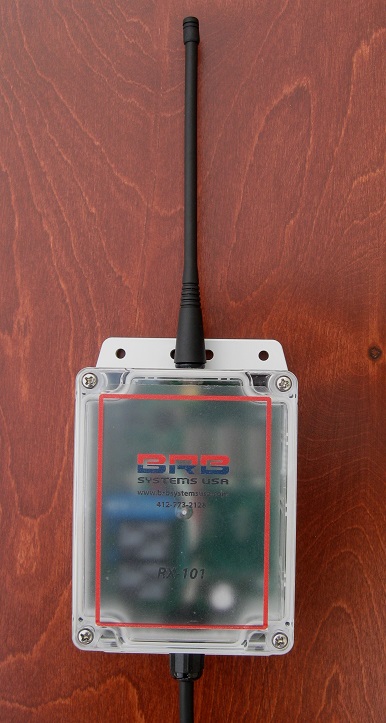

RX-101 Digital Receiver

RX-101 Advanced Digital Receiver

(Part# RX-101 RECEIVER)

The TX-101 Advanced Digital Receiver is used in all of BRB's Wireless Voice Release Systems and Wireless Counting Systems.  It is a professional grade digital receiver with exceptional quality and range, but priced for the individual shooter.

Features:

  • Incorporates 128 channels of different frequencies to safeguard against cross calls and interference
  • Exceptional 500 yard range
  • Each RX-101 Receiver is capable of operating 1 or 2 traps, which allows you to buy half as many receivers if your using them with two machines close enough together to use this feature, because you will have to plug the receiver into each machine.
  • Extra cable available for $0.50/foot to make this option work.
  • Power is 12v DC standard but they are available in 120v AC or 240v AC options without the need to purchase a separate wall mounted transformer
  • Selectable Standard or Fast trap cocking modes
  • 2 Antenna Options:
  • 1)  Standard rubberized antenna (shown in the picture)
  • 2)  Optional corded exterior magnetic mount extended antenna, for tough locations, at no additional cost

Price: $135.00
