Counter Release Systems
We are pleased to offer a selection of BRB Counter Release Systems.
|
Get paid for all of the targets that are released with a counter system that is priced for everyone, not only the wealthiest clubs. The cost of this incredibly simple to use system has been kept to a minimum by removing the unwanted, and often unused, functions found on other more expensive counters.
Wired or Wireless?
4 Different Models Available:
Realistically tiered pricing makes for a large initial cost savings with the purchase of wired or semi wireless systems.
Equipment:
- No computer hardware or operating skills required by the club or shooter
- No complicated programs to learn or follow
- No programming updates required
Instead, the BRB Counter employs a separate Clubhouse Console, designed with simplicity in mind, for count programming and tracking usage. The count is loaded onto our unique, physically connected, customer controlled Dongle, to eliminate the potential for data corruption, loss or modification associated with cards and card-readers.
Superior secure communication for the wireless systems is due to the use of BRB's TX-101 and RX-101 handeld Transmitter and Receiver hardware.
Features:
- Counts up or down
- Solo mode, with audible countdown before release
- Control 1, 2, 3 or 4 traps for Trap, Skeet or Sporting Clays, depending on the model selection
- Voice Release option via lapel microphone or full-size Canterbury style microphone on stand
- Skeet units supplied with an optional Skeet Timer
Security:
- Your club can easily program each Dongle with a specific Ground ID that will not work at any other club
Operation:
- Larger, easy-to-read displays keep you informed of the count
Power:
- 120v AC or 12v DC for the wired units
- External 12v battery for the wireless units or 12v BRB Power Pack with optional solar charging
- The Tally Trap Counter is powered from your existing trap system and so does not require the purchase of any additional power source. Just plug into your existing equipment and go!
No Risk:
- Trial products available with no obligation to buy
- Please ask us if you're interested in trying one of these systems out for your club
|
Semi Wireless Counter Release System
|
Clubhouse Console
|
Counter System Dongles
|
Tally Trap Counter for use with BRB or Canterbury Voice Release System
|
Wired Counter Release System Options |
 |

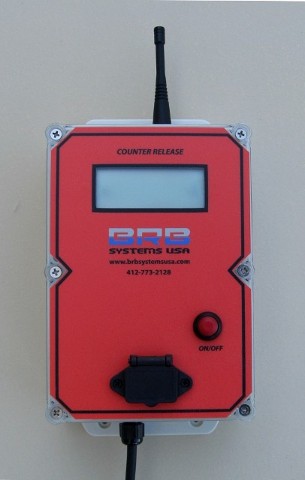

Wired Counter Release System |
(Part# WC 3 BUTTON shown in picture) |
For use with any 1 or 2 trap combination of Trap, Skeet or Sporting Clays. This unit is supplied with your choice of a 1 or 3 button release cord that is connected with Ultraflex cabling. Includes: Counter unit, button release, 5 dongles and all the cable necessary to install the system up to 2 machines
Features:
- Counts up or down
- Solo Shooter mode with timed and audible countdown to release
- Supplied with 5 Dongles per Counter Unit
- Wired Button Release - 1 or 3 Button Options
- 3 Button: Part# WC 3 BUTTON
- 1 Button: Part# WC 1 BUTTON
The trap connection is made via the 20 feet of included control cable. Additional cabling is available for $0.50/ft

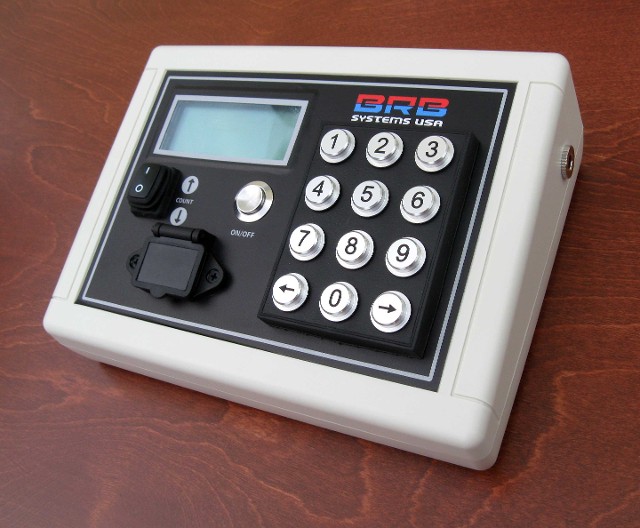

Console
The Clubhouse Console is used for loading, zeroing out and checking Dongle target count, as well as changing the club ground ID if needed.
Power is via a plug-in power supply included with the console.
Features:
- Only 1 required per club regardless of how many counter systems you need or model type
- Due to that reason, console is sold separately
- So simple to operate that any team member will be an expert in minutes
|
Price: $600
Clubhouse Console: $300 |
 |
12 Station Package of Wired Counter Release Systems |
|
|
This package has 12 complete Wired Counter Release Systems and the Clubhouse Console.
If you're looking for a perfect wired counter release package for your 12 Station Sporting Clays Course, this is it. If you have more than 12 stations on your course, just add an individual Wired Counter Release System for each additional station.
Each Wired Counter Release System includes: Counter unit, button release, 5 dongles and all the cable necessary to install the counter and up to 2 machines
Total contents:
- 12 Counter Units
- 12 Three Button Release Cords
- 60 Dongles
- All cables necessary to connect each counter unit and release cord up to 2 machines
- Clubhouse Console included
The trap connection is made via the 20 feet of included control cable. Additional cabling is available for $0.50/ft |
|
|
Semi Wireless Counter Release System Options |
 |

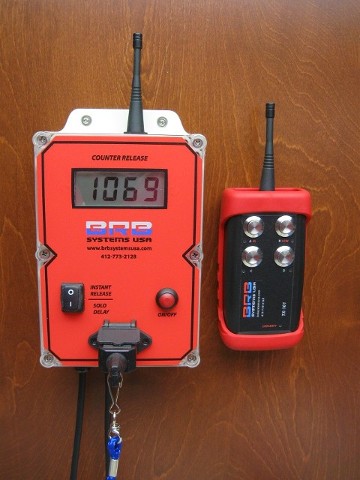

Semi Wireless Counter Release System |
(Part# SWC+2RX-201 shown in the picture) |
This system is available in several versions.
The SWC+RX-201 model comes with only one RX-201 receiver and is ideal for one machine but can be used with two machines if you don't mind running extra cabling to the one receiver. It would normally be supplied with 1 button release cord but you can get the optional 3 button release cord at no additional cost if you are going to use it for two machines.
The SWC+2RX-201 model comes with two RX-201 receivers and is ideal for any situation using two machines, such as Skeet or a Sporting Clays station, without the need for any extra cables. Comes standard with 3 button release cord but you can get the optional 4 button release cord at no additional cost if that meets your needs.
The secure link to the trap is via BRB's TX-101 Transmitter and RX-201 Receiver hardware. 128 channels and a different frequency at each stand eliminates interference between stands.
Features:
- Controls and counts 1-4 traps
- Counts up or down
- Solo Shooter mode with timed and audible countdown to release
- Supplied with 5 Dongles per Counter Unit
- Wired button release - 1, 3 or 5 button depending on model and your needs
- Wireless trap connection
- 2 Receivers: Part# SWC+2RX-201
- 1 Receiver: Part# SWC+RX-201
If you want to take advantage of using 2 machines per receiver, additional cabling is available for $0.50/ft
Console
The Clubhouse Console is used for loading, zeroing out and checking Dongle target count, as well as changing the club ground ID if needed.
Power is via a plug-in power supply included with the console.
Features:
- Only 1 required per club regardless of how many counter systems you need or model type
- Due to that reason, console is sold separately
- So simple to operate that any team member will be an expert in minutes
|
2 Trap Single Station Price: $900
1 Trap Single Station Price: $780
|
 |
12 Station Packages of Semi Wireless Counter Release Systems |
(Part# SWC12+24RX-201+CONSOLE shown in picture) |
These packages have 12 complete Semi Wireless Counter Release Systems and the Clubhouse Console.
If you're looking for a perfect semi wireless counter release package for your 12 Station Sporting Clays Course, one of these two is perfect. If you have more than 12 stations on your course, just add an individual Semi Wireless Counter Release System for each additional station.
There is a 12 Station Package for each of the two different Semi Wireless Counter Release System models.
Part# SWC12+12RX-201+CONSOLE contains:
- 12 Counter Units
- 12 RX-201 Digital Receivers
- 12 One Button Release Cords (3 Button optional)
- 12 Ultraflex cables for connecting button release to counter units
- 60 Dongles
- All cables necessary to connect each receiver up to 1 machine (cabling to connect a 2nd machine to each receiver available at additional cost)
- Clubhouse Console included
Part# SWC12+24RX-201+CONSOLE contains:
- 12 Counter Units
- 24 RX-201 Digital Receivers
- 12 Three Button Release Cords
- 12 Ultraflex cables for connecting button release to counter units
- 60 Dongles
- All cables necessary to connect each receiver up to 1 machine
- Clubhouse Console included
|
2 Traps/Station 12 Station Course Price: $10,680
1 Trap/Station 12 Station Course Price: $9,240
|
|
|
Reverse Semi-Wireless Counter Release System |
|
|
Using features of our advanced digital transmitter, such as voice operation and many user adjustable shooting modes, makes this system perfect for Skeet, or any situation where button release wiring is unwanted, at a lower price than an all wireless system.
FEATURES
- Counts up or down
- Preload rounds of 25 or single target count
- Pay or Free Play modes
- Wireless Button Controller
- Wired trap control
- Choice of adjustable shooting modes
- Advanced interference resistant protocol
- User selectable Voice Release mode with lapel mic
- Solo Shooter mode with audible countdown before release
- Optional full sized microphone & stand
- Compatible with all BRB counters
Console
Manages counter system operation. Designed to make loading/unloading of shooter Dongles, counter unit settings and monitoring target use, so simple that any team member will be an expert in minutes.
FEATURES
- No complicated software to confuse the user
- Creates Free Play, Preload or Single Count management
- Dongles
- Tracks target use with built in ‘Totalizer’
- Sets equipment Ground ID to ensure security
- Only 1 needed per club irrespective of counter number or type
- Wall plug in, or battery powered options
- Clubhouse Console sold separately
|
Price: $805
Clubhouse Console: $300 |
|
|
12 Station Package of Reverse Semi-Wireless Counter Systems |
|
|
This package has 12 complete Reverse Semi-Wireless Counter Release Systems and includes the Clubhouse Console.
If you're looking for a perfect reverse semi-wireless counter release package for your 12 Station Sporting Clays Course, with the ability to add voice release options for solo shooting, this is it. If you have more than 12 stations on your course, just add an individual Reverse Semi-Wireless Counter Release System for each additional station.
This package contains:
- 12 Counter Units
- 12 TX-101 Wireless Button Controllers w/ included Lapel Microphones
- 60 Dongles
- Clubhouse Console
- All cables necessary to connect each counter unit up to 1 machine (cables to connect a 2nd/3rd/4th machine available at additional cost)
|
|
|
Fully Wireless Counter Release System Options |
 |
Fully Wireless Counter Release System |
(Part# FWC+2RX-201 shown in picture) |
The exceptional range of our wireless equipment makes for ease of use in Trap, Skeet or Sporting Clays in any combination of 1-4 traps. Fully wireless capability for this system is achieved by using our TX-101 Wireless Transmitter as a replacement for the wired pull cord. The use of this piece of equipment brings all the features and advantage of our advanced digital transmitter, such as voice operation and many user adjustable shooting modes to the field.
The secure link to the trap is via BRB's TX-101 and RX-201 hardware. 128 channels and a different frequency at each stand eliminates interference between stands. For more information on the many modes of operation available with this equipment check out the individual components.
Features:
- Controls and counts 1-4 traps
- Wireless button release
- Wireless trap connection
- Advanced interference resistant protocol
- Choice of 16 shooting modes
- Voice Release via included lapel microphone or optional full-size microphone and stand with Deluxe System
- Counts up or down
- Solo Shooter mode with timed and audible countdown to release
- Supplied with 5 Dongles per Counter Unit
- Each unit includes two RX-201 digital receivers
If you want to take advantage of using 2 machines per receiver, additional cabling is available for $0.50/ft
Console
The Clubhouse Console is used for loading, zeroing out and checking Dongle target count, as well as changing the club ground ID if needed.
Power is via a plug-in power supply included with the console.
Features:
- Only 1 required per club regardless of how many counter systems you need or model type
- Due to that reason, console is sold separately
- So simple to operate that any team member will be an expert in minutes
|
Price: $1,050
Deluxe Price: $1,170
|
 |
12 Station Package of Fully Wireless Counter Release Systems |
(Part# FWC12+24RX-201+CONSOLE shown in picture) |
These packages have 12 complete Fully Wireless Counter Release Systems and the Clubhouse Console.
If you're looking for a perfect fully wireless counter release package for your 12 Station Sporting Clays Course, one of these two would be perfect. If you have more than 12 stations on your course, just add an individual Fully Wireless Counter Release System for each additional station.
There are two different 12 Station Packages of Fully Wireless Counter Release Systems.
Part# FWC12+12RX-201+CONSOLE contains:
- 12 Counter Units
- 12 RX-201 Digital Receivers
- 12 TX-101 Digital Transmitters
- 12 lapel microphones for voice release
- 60 Dongles
- All cables necessary to connect each receiver up to 1 machine (cabling to connect a 2nd machine to each receiver available at additional cost)
- Clubhouse Console included
- Optional Deluxe Version includes 12 full-size microphones with stands and bracket for the TX-101 Transmitter (additional $1,000)
Part# SWC12+24RX-201+CONSOLE contains:
|
2 Trap/Station 12 Station Course Price: $12,280
2 Trap/Station Deluxe Version Price: $13,480
1 Trap/Station 12 Station Course Price: $10,830
1 Trap/Station Deluxe Version Price: $12,030
|
 |
|
(Part# TALLY TRAP COUNTER) |
Do you already own a BRB or Canterbury Trap Voice Release System?
Ideal for the club practice field, our Tally Trap Counter uses the same Clubhouse Console and Dongles as our other counter units, but requires no additional power source. Just plug it into your trap systems existing power supply and control box using the provided cable, and go!
Features:
- Counts up or down
- Supplied with 5 Dongles per Counter Unit
- Connects directly to wired BRB or Canterbury Voice Release Systems
Console
The Clubhouse Console is used for loading, zeroing out and checking Dongle target count, as well as changing the club ground ID if needed.
Power is via a plug-in power supply included with the console.
Features:
- Only 1 required per club regardless of how many counter systems you need or model type
- Due to that reason, console is sold separately
- So simple to operate that any team member will be an expert in minutes
|
Price: $435
Clubhouse Console: $300 |
Wireless Voice Release Counter |
|
|
Wireless Voice Release Counter |
|
|
This counter system has been designed specifically for use with our Wireless Trap, Wireless Skeet and Wireless Overlay equipment. Full wireless capability is achieved by using our proven TX-101 Wireless Transmitter hardware. The secure link between the counter and wireless voice release incorporates the ability to use a different frequency at each stand, eliminating cross calls.
FEATURES
- Controls 1, 2 or 3 traps for Trap, Skeet or Overlay
- Counts up or down
- Preload rounds of 25 or single target count
- Pay or Free Play modes
- Connects to your trap and voice release without wiring
- Advanced interference resistant protocol
- Compatible with all BRB counter equipment
Console
Manages counter system operation. Designed to make loading/unloading of shooter Dongles, counter unit settings and monitoring target use, so simple that any team member will be an expert in minutes.
FEATURES
- No complicated software to confuse the user
- Creates Free Play, Preload or Single Count management Dongles
- Tracks target use with built in ‘Totalizer’
- Sets equipment Ground ID to ensure security
- Only 1 needed per club irrespective of counter number or type
- Wall plug in, or battery powered options
- Sold Separately
|
Price: $580
Clubhouse Console: $300 |
|
